Photovoltaic Inverters: A Comprehensive Overview

The world is increasingly embracing renewable energy, with solar power taking a leading role in the shift toward sustainable energy solutions. Photovoltaic (PV) systems, which convert sunlight into electricity, are central to this transformation. Among the critical components of a photovoltaic system is the photovoltaic inverter. While solar panels generate direct current (DC) electricity from sunlight, the inverter converts it into alternating current (AC), the standard form of electricity used in most homes, businesses, and the grid.

This article delves into the workings, types, importance, and advancements of photovoltaic inverters, providing an in-depth understanding of their role in solar energy systems.

What is a Photovoltaic Inverter?

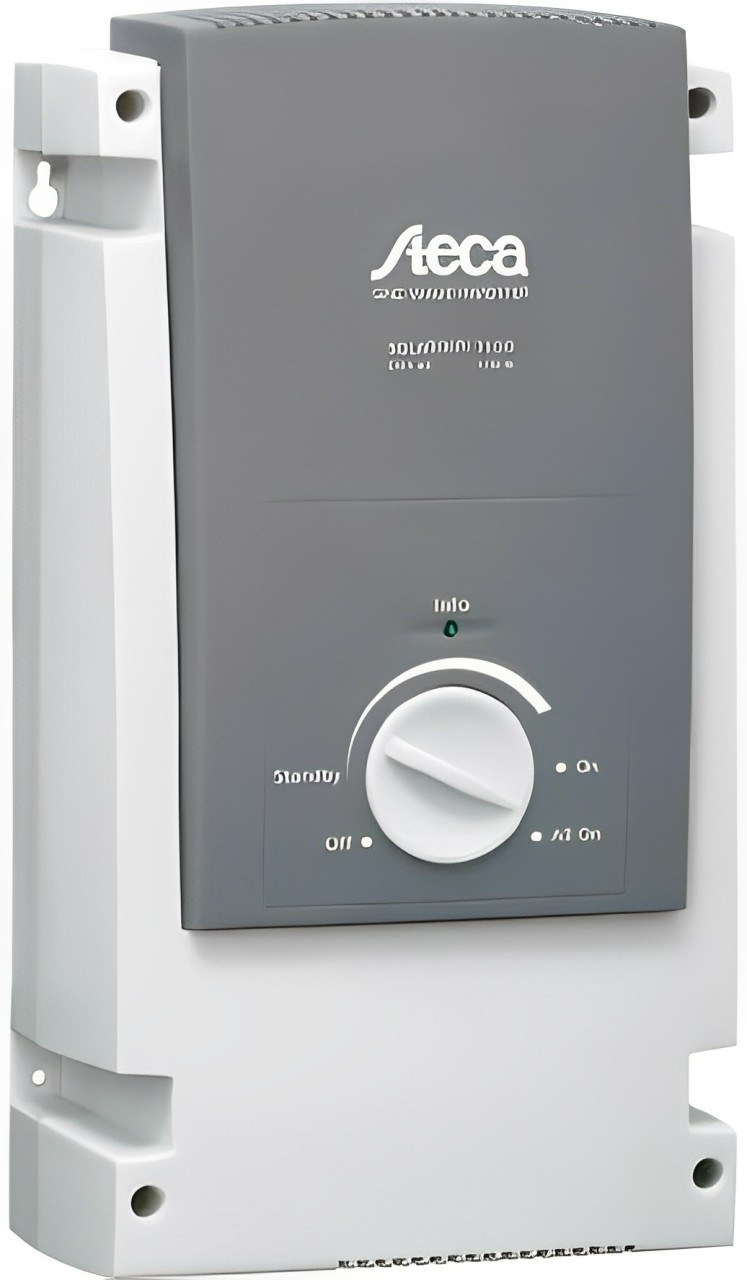

A photovoltaic inverter, also known as a solar inverter, is an electrical device that converts the direct current (DC) produced by solar panels into alternating current (AC). This conversion is crucial because most of the appliances we use and the electricity grid operate on AC power. Without an inverter, the electricity generated by solar panels would be unusable in most practical applications.

In addition to DC-to-AC conversion, modern inverters often perform several additional functions:

• Monitoring the system’s performance by tracking energy production.
• Maximizing energy output through a process known as maximum power point tracking (MPPT).
• Ensuring safety by disconnecting from the grid in case of power surges or failures.

The Function of a Photovoltaic Inverter in Solar Power Systems

The primary function of the photovoltaic inverter is the conversion of electricity from DC to AC. The electricity produced by a PV system varies in voltage and current depending on sunlight intensity and temperature, which means the inverter must adjust to these fluctuations to provide a stable AC output.

Photovoltaic inverters also provide several other critical functions, such as:

• Grid synchronization: For solar systems connected to the grid, the inverter ensures that the AC electricity it outputs is synchronized with the grid’s voltage and frequency. Without this, there would be power mismatches that could damage equipment or destabilize the power grid.
• Safety features: Inverters have built-in safety features like ground fault protection and islanding protection, which prevents the solar system from sending power to the grid during a blackout. This protects line workers and the public.
• Energy storage integration: With the increasing use of batteries to store excess solar energy, many inverters now offer energy storage management, enabling homeowners to store solar energy for later use.

Types of Photovoltaic Inverters

Photovoltaic inverters are broadly categorized based on their design and application. The following are the primary types of inverters:

1. String Inverters

String inverters are the most common type of inverter used in residential and small commercial solar systems. In this configuration, a series of solar panels (or a "string") is connected to a single inverter. The inverter converts the DC electricity from the entire string into AC electricity.

Advantages:

• Simple and cost-effective for small installations.
• Easy to maintain and monitor.

Disadvantages:

• If one panel in the string underperforms, the entire string’s output is reduced.
• Not ideal for systems where panels are exposed to varying amounts of sunlight (e.g., shaded areas).

2. Microinverters

Microinverters are small inverters attached to each solar panel in a system. Instead of converting the electricity from a string of panels, microinverters convert the DC electricity from each individual panel into AC electricity.

Advantages:

• Maximizes the output of each panel, as shading or underperformance of one panel doesn’t affect the others.
• Provides panel-level monitoring for better system insights.

Disadvantages:

• More expensive than string inverters, especially for larger installations.
• More components mean increased potential points of failure.

3. Central Inverters

Central inverters are large-scale inverters used in commercial and utility-scale solar installations. Like string inverters, they are responsible for converting the DC electricity from several strings of solar panels. However, these strings are typically much larger and converge into a central inverter unit.

Advantages:

• Cost-effective for large-scale projects.
• High efficiency at larger scales.

Disadvantages:

• Requires extensive wiring infrastructure.
• If the central inverter fails, the entire system stops working.

4. Hybrid Inverters

Hybrid inverters, also known as battery-based inverters, are designed to work with solar panels and energy storage systems. They can direct solar energy to the grid, home, or battery, depending on the energy needs and availability. These inverters play a crucial role in homes with battery storage systems, such as Tesla Powerwall.

Advantages:

• Efficiently manages energy between the grid, home, and storage.
• Provides backup power during grid outages.

Disadvantages:

• Typically more expensive than other types of inverters.
• Complex installation and configuration process.

5. Power Optimizers

While not strictly inverters, power optimizers are often used alongside string inverters to improve energy yield. They are attached to individual solar panels and perform MPPT at the panel level, optimizing the voltage and current for each panel. The DC electricity is then sent to a string inverter for conversion to AC.

Advantages:

• Improves the performance of string inverters in systems with shading issues or different panel orientations.
• Panel-level monitoring capabilities.

Disadvantages:

• Adds complexity to the system compared to a simple string inverter setup.
• Requires pairing with a string inverter.

Advances in Photovoltaic Inverter Technology

As solar power continues to evolve, so too does photovoltaic inverter technology. Modern inverters are becoming smarter, more efficient, and more integrated into the broader energy ecosystem. Some of the key trends and advancements in inverter technology include:

1. Smart Inverters

Smart inverters offer advanced communication capabilities that allow them to interact with the grid in ways that traditional inverters cannot. They can send and receive signals to manage voltage and frequency fluctuations, support grid stability, and even participate in demand response programs.

2. Inverter Efficiency

Inverter efficiency has improved dramatically in recent years, with many inverters now achieving efficiencies above 98%. This means less energy is lost during the DC-to-AC conversion process, making solar energy systems more efficient and cost-effective.

3. Energy Storage Integration

With the growth of home energy storage solutions, such as lithium-ion batteries, inverters now often come with integrated storage management capabilities. These hybrid inverters allow solar systems to store excess energy for later use, enhancing energy independence and providing backup power during grid outages.

4. Integration with Smart Homes

As more homes adopt smart home technology, inverters are becoming key players in home energy management systems. They can interact with smart thermostats, energy monitors, and other devices to optimize energy use and reduce costs.

Key Factors to Consider When Choosing a Photovoltaic Inverter

Choosing the right inverter is critical to the success of a photovoltaic system. Several factors should be considered when selecting an inverter:

1. System Size and Design

The size of the solar power system plays a significant role in determining the best inverter. For small residential systems, string inverters or microinverters are popular choices. For large commercial or utility-scale systems, central inverters are more suitable.

2. Shading and Panel Orientation

If a solar installation is subject to shading or uses panels with different orientations, microinverters or power optimizers can help ensure the system operates efficiently. In contrast, string inverters may struggle in such conditions.

3. Budget

Inverters vary in cost depending on their type and features. Microinverters and hybrid inverters are generally more expensive than string inverters, but they may offer greater efficiency or functionality. Budget considerations should be balanced against the long-term energy production and reliability of the system.

4. Future-Proofing

With advancements in battery technology and grid integration, homeowners and businesses may want to consider hybrid inverters to future-proof their systems for energy storage or grid interaction.

Conclusion

Photovoltaic inverters are the heart of solar power systems, enabling the electricity generated by solar panels to be used by homes, businesses, and the grid. With advancements in technology, inverters are becoming more efficient, smarter, and capable of handling increasingly complex energy needs. Understanding the different types of inverters, their functions, and the trends driving their development is essential for anyone looking to invest in solar energy systems.
