Understanding Pressure Gauges: A Comprehensive Guide



Pressure gauges are essential instruments in various industrial, automotive, and scientific applications. They provide accurate measurements of pressure levels within a system, ensuring safe and efficient operations. This article delves into the types, workings, applications, and maintenance of pressure gauges, offering a thorough understanding of these vital devices.

Introduction to Pressure Gauges

Pressure gauges are devices used to measure and display the pressure in an enclosed fluid. Commonly measured in units such as pounds per square inch (psi), bar, or Pascal, these tools are critical for monitoring the condition and safety of a pressure system. They help in detecting leaks or pressure changes that may affect the performance or safety of the system.

Types of Pressure Gauges

There are several types of pressure gauges, each suited for specific applications and pressure ranges:

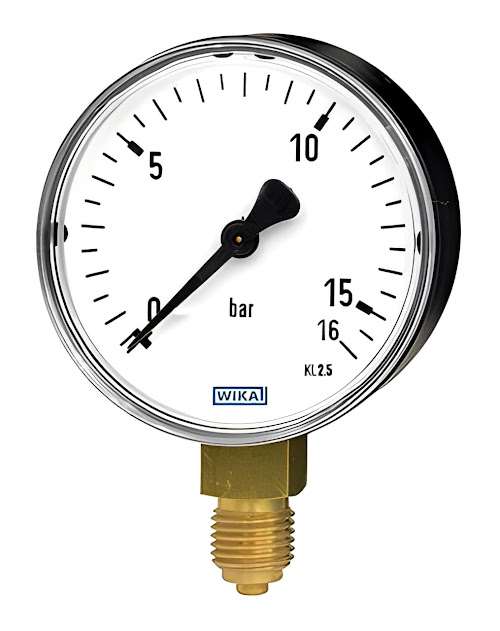

1. Bourdon Tube Pressure Gauges: The most common type of gauge is a curved tube that straightens under pressure. The mechanical movement is then translated into a dial reading.

2. Diaphragm Pressure Gauges: These gauges use a diaphragm that flexes in response to pressure changes. They are ideal for low-pressure measurements and corrosive environments.

3. Capsule Pressure Gauges: Similar to diaphragm gauges, capsule pressure gauges are highly sensitive and used for very low pressure.

4. Digital Pressure Gauges: Offering high accuracy and readability, digital gauges use electronic sensors and display the pressure reading on a digital screen.

5. Differential Pressure Gauges: These are used to measure the difference in pressure between two points. They are crucial in process industries for filter monitoring, flow measurements, and level monitoring.

How Pressure Gauges Work

The working principle of a pressure gauge depends on its type:

• Bourdon Tube: When pressure is applied, the Bourdon tube straightens, and this movement is converted via a gear and linkage mechanism into a needle movement on the dial.

• Diaphragm and Capsule: Pressure changes cause the diaphragm or capsule to move, which is then translated into a mechanical displacement and read on a dial.

• Digital Gauges: These utilize pressure transducers that convert pressure into an electrical signal, which is processed and displayed numerically.

Applications of Pressure Gauges

Pressure gauges have wide-ranging applications across various sectors:

• Industrial: Monitoring pressure in boilers, fuel systems, and compressed air systems.

• Automotive: Checking tyre pressure, oil pressure, and turbo boost pressure.

• Medical: Used in devices like blood pressure monitors and respiratory equipment.

• Environmental: Measuring water pressure in treatment facilities and monitoring atmospheric pressure in meteorology.

Installation and Placement Tips

Proper installation and placement are crucial for accurate readings:

• Location: Install gauges at points where pressure monitoring is most critical.
• Orientation: Ensure the gauge is easily visible and positioned away from vibration, extreme temperatures, and corrosive environments.
• Mounting: Use proper fittings and ensure that the gauge is securely mounted to avoid leaks and provide stability.

Maintenance and Calibration

Maintaining and calibrating pressure gauges is essential to ensure they continue to provide accurate readings:

• Regular Inspection: Check for any signs of wear, leaks, or damage to the gauge.
• Calibration: Regular calibration against a standard is necessary to maintain accuracy, especially after the gauge has been subjected to overpressure or mechanical shock.
• Cleaning: Keep the gauge clean, especially the dial and glass, to ensure readability.

Troubleshooting Common Issues

Some common issues with pressure gauges include zero error, span error, and pointer sticking. Regular maintenance checks can identify these issues early, and solutions may involve recalibration, replacing damaged parts, or simply cleaning the gauge.

Conclusion

Pressure gauges are indispensable tools that help maintain the efficiency and safety of pressure systems. Understanding the types, workings, and proper maintenance of these gauges can significantly enhance their lifespan and reliability. With the right kind and care, pressure gauges will continue to be a cornerstone in effective system management across multiple industries.
